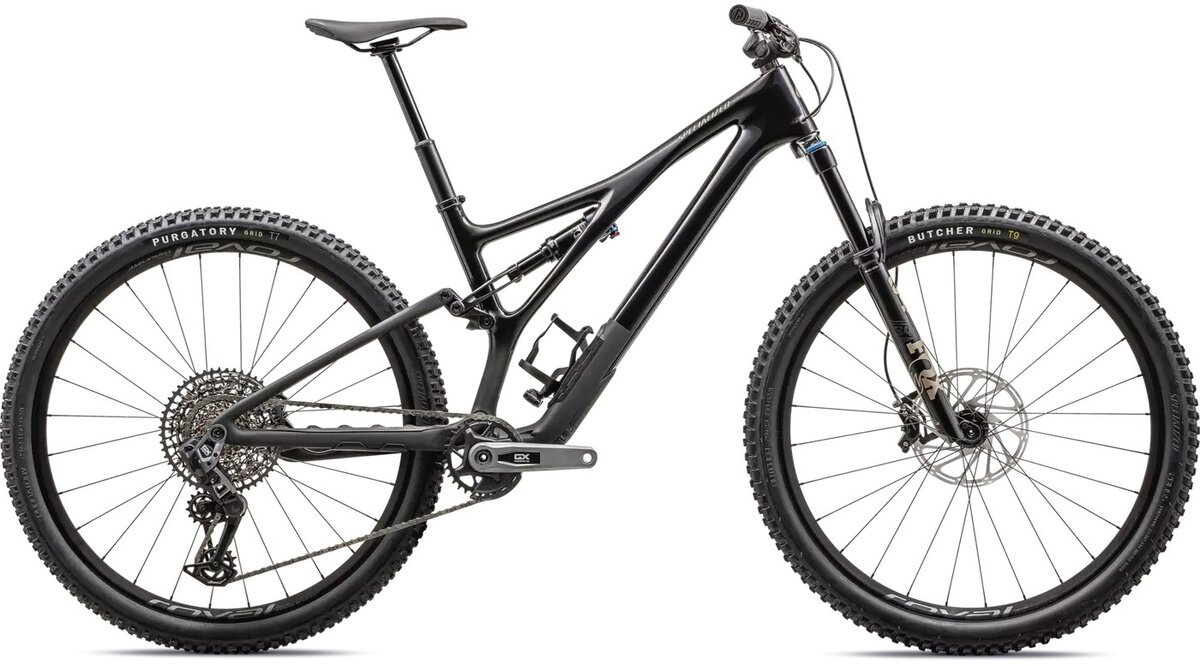

With the all-new Stumpjumper Expert, we've bottled up that "new bike day" feeling and put it into a radical new trail bike so agile, so lively, so in-tune with the trail, that it feels like an extension of your body. Levitate up the climbs. Decimate the descents. The Stumpjumper Expert is going to make you rethink how a trail bike should ride.
THE TRAIL BENCHMARK—When we set out to design the all-new Stumpjumper, we pursued some hefty goals. It had to excel on any kind of trail, for every style of rider. To achieve that, we went after serious weight reduction without sacrificing durability, a stiff, responsive chassis that still rides light and lively, geometry that improves everyone’s riding, and the best suspension kinematics we know how to design. Turns out, you can have your cake and eat it too with the new Stumpjumper.
THE SWEETEST 130MM OF TRAVEL YOU’LL EVER RIDE—We massaged the kinematics of the Stumpjumper suspension to bring out the very best all-round performance possible in a 130mm package. Countless hours of suspension lab development and field testing created a refined mid-travel ripper that eats big terrain like a gravity fed beast, handles like a dream everywhere, and climbs like it has a motor.
PROGRESSIVE GEOMETRY—The S-Sizing geometry of the new Stumpjumper hits the progressive sweet spot. It’s long, low and slack, with a short offset fork and a steeper seat tube angle. These numbers combine to make your ride more stable, more carvealicious, more comfortable climbing, more better everywhere. With FlipChip adjustability you’re able to further fine-tune your fit, ensuring that your new Stumpjumper performs flawlessly on whatever terrain you choose.
RIDER-FIRST ENGINEERED™—Rider-First Engineered™ frames use a size-specific approach to ride characteristics that ensures benchmark handling and flawless performance, regardless of frame or rider size. Whether you’re a jump-happy grom riding an S1, or a DH-fiend giant in need of the lengthy S6, you’ll experience the same ride traits – rail-sharp cornering and balanced front and rear stiffness – at the lightest-possible weight, And by light, we mean real light: 2,250 grams (S-Works, S-3 size, with rear shock).
SWAT™—We introduced the SWAT™ door on the Stumpjumper in 2016, adding room IN your frame for those “oh sh**t” necessities like pumps and spare tubes, and immediately rendering jersey pockets redundant.
|Frame||FACT 11m carbon chassis and rear-end, asymmetrical design, 29 Trail Geometry, SWAT™ Door integration, flip chip Head Tube/Bottom Bracket adjustment, threaded BB, fully enclosed internal cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, replaceable derailleur hanger, 130mm of travel|
|Fork||FOX FLOAT 34 Performance Elite, GRIP2 damper, 15x110mm, 44mm offset, 140mm of travel|
|Rear Shock||FOX FLOAT DPS Performance Elite, Rx Trail Tune, EVOL Air sleeve, 3-position adjustment w/ Open Mode Adjustment, 190x45mm|
|Rims/Wheels||Roval Traverse 29 Alloy, 30mm inner width, hand-built, 2Bliss Ready|
|Hubs||Roval, sealed cartridge bearings, 15x110mm spacing, 28h|
|Spokes||DT Swiss Competition Race|
|Tires||Front Tire Butcher, GRID casing, GRIPTON® T9 compound, 29x2.3". Rear Tire Purgatory, GRID casing, GRIPTON® T7 compound, 29x2.3"|
|Crankset||SRAM GX Eagle Crankset, Alloy, Integrated Guard, 55mm Chainline, S1:165mm, S2-S5: 170mm, S6: 175mm|
|Bottom Bracket||SRAM DUB, BSA 73mm Wide, Threaded|
|Chain||SRAM GX Eagle Transmission Flattop Chain|
|Rear Derailleur||SRAM GX Eagle Transmission Derailleur|
|Shifters||SRAM AXS POD Controller|
|Handlebars||Specialized Trail, 7050 alloy, 8-degree backsweep, 6-degree upsweep, 30mm rise, 780mm, 35mm clamp|
|Stem||Alloy Trail Stem, 35mm bar bore|
|Brakes||Rear Brake SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 180mm. Front Brake SRAM Code Silver Stealth, 4-piston caliper, hydraulic disc, 200mm|
|Saddle||Bridge Comp, Hollow Cr-mo rails, 155/143mm|
|Seat Post||OneUp, Dropper Post-V2, MMX lever, 34.9 (S1:120mm, S2/S3:150mm, S4: 180mm, S5/S6: 210mm)|
* Subject to change without notice.
|Gloss Obsidian / Satin Taupe / S3||93323-3003||SJE176038993|
|Gloss Obsidian / Satin Taupe / S4||93323-3004||SJE179892884|
|Gloss Obsidian / Satin Taupe / S5||93323-3005||SJE174290495|
|Satin Harvest Gold / Midnight / S2||93323-3102||SJE22467272|
|Satin Harvest Gold / Midnight / S3||93323-3103||SJE22769843|
|Satin Harvest Gold / Midnight / S4||93323-3104||SJE224477214|
|Satin Harvest Gold / Midnight / S5||93323-3105||SJE2238405|
