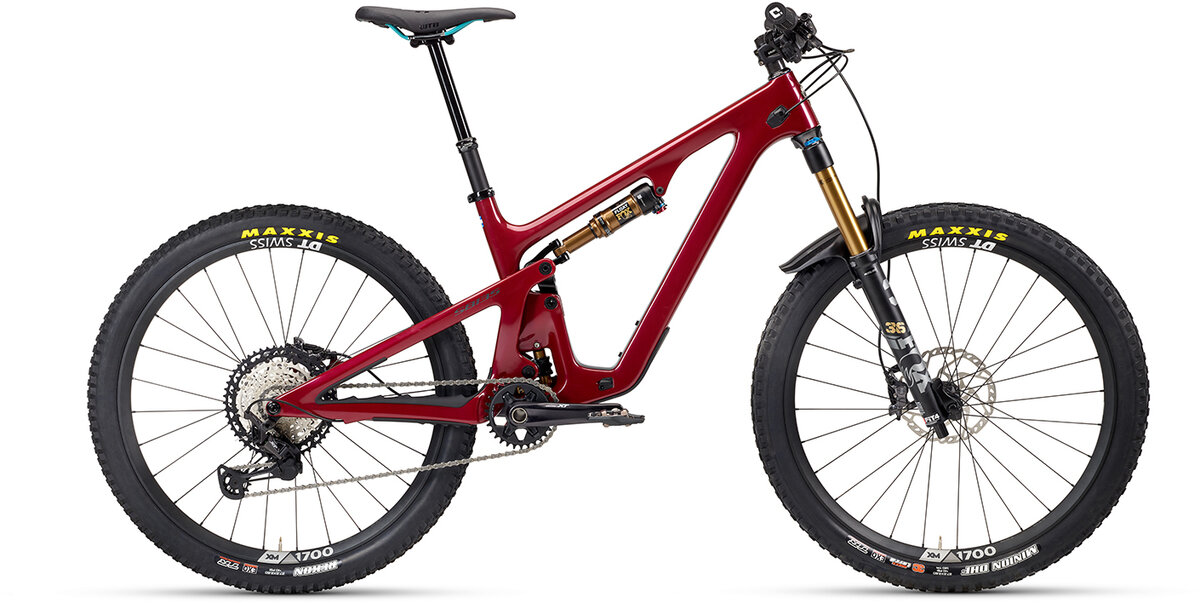

Yeti Cycles SB135 TXT XT - 2024

Yeti Cycles SB135 TXT XT
  • Color: Cherry
  • Color: Rhino
  • Color: Turquoise
This item is currently not available.

Details

Begging for your input, chomping to respond.

Flick it, pedal it, pump it to the moon. A stoke-making mutation of fun-focused DNA, blinding proof that less can be a whole lot more.

Come out to play. You bet your ass the SB135 is still down.

Dart. Weave. Drift.

There are main lines and race lines. And then there are the completely unexpected lines that require a rider with a different headspace all together. Riders looking to find the fun love the SB135 for its quick-witted playfulness, agility, and its ability to unlock creativity.

Geometry Chart:
SizeX-SmallSmallMediumLargeX-LargeXX-Large
Wheel Size (IN) 29 29 29 29 29 29
Reach (mm) 395 425 455 475 500 515
Top Tube Length [Effective] (mm) 540 571 603 625 652 672
Stack (mm) 604 610 615 625 635 655
Head Tube Length (mm) 92 98 104 115 126 147
Seat Tube Length (mm) 345 365 400 440 470 485
Seat Tube Angle [Effective] 76.5° 76.5° 76.5° 76.5° 76.5° 76.5°
Seat Tube Angle [Actual] 71.1° 71.5° 71.9° 72.3° 72.7° 73.2°
Head Tube Angle 66.5° 66.5° 66.5° 66.5° 66.5° 66.5°
BB Height [Estimated] (mm) 335 335 335 335 335 335
Front Center (mm) 689 722 754 778 808 831
Chainstay Length (mm) 433 435 437 439 441 443
Wheelbase (mm) 1122 1157 1191 1217 1249 1274
Standover (mm) 699 709 714 718 720 725
Fork [Axle-To-Crown] (mm) 544 544 544 544 544 544
Fork Travel (mm) 130 130 130 130 130 130
Vertical Fork Travel (mm) 119 119 119 119 119 119
Fork Offset (mm) 44 44 44 44 44 44

Specs

Frame TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Fork FOX FACTORY 36 FIT 4/150MM
Rear Shock FOX FACTORY FLOAT
Wheels DT SWISS XM1700 30MM
Tires MAXXIS MINION DHF 2.6 EXO / MAXXIS REKON 2.6 EXO
Bottom Bracket Shimano XT
Crankset SHIMANO XT 170MM
Chainrings 30T
Shifters SHIMANO XT
Rear Derailleur Shimano
Cassette/Freewheel SHIMANO XT 10-51
Chain SHIMANO XT
Brake Levers Shimano XT
Handlebars YETI CARBON 35X760MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 CNC 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER FACTORY 31.6MM / XS-SM: 150MM, MD: 175MM, LG-XL: 200MM
Saddle SILVERADO CUSTOM
Pedals Sold separately

* Subject to change without notice.
