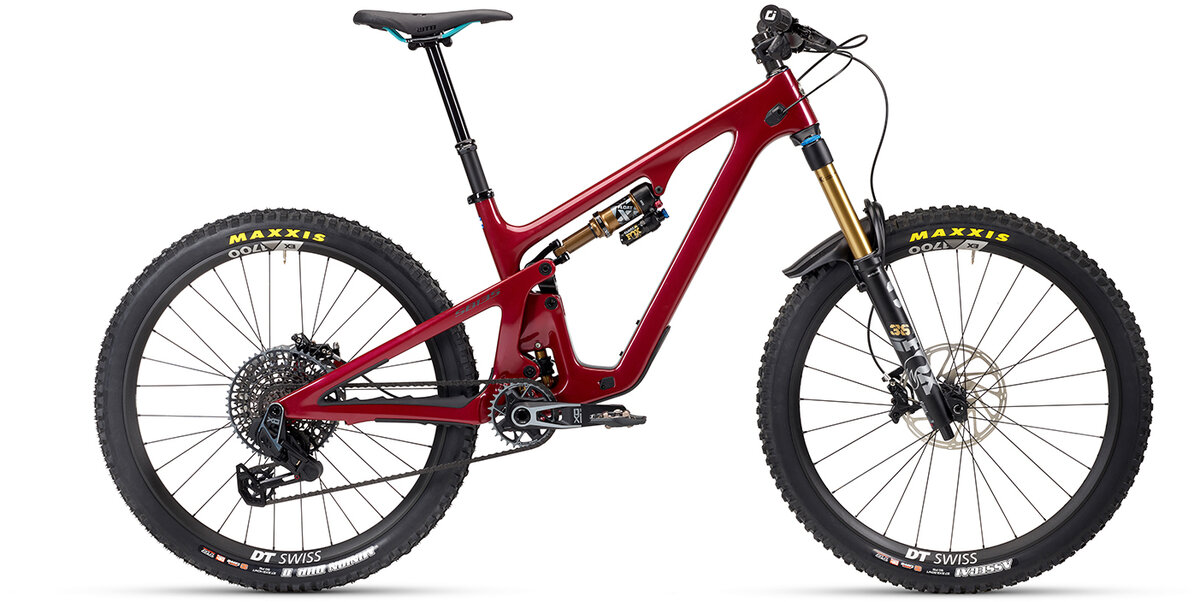

Yeti Cycles SB135 LRT3 XO T-Type - 2024

No Image Available
This item is currently not available.

Details

SRAM Eagle Transmission Equipped - stronger, better shifting, wirelessly!

Begging for your input, chomping to respond.

Flick it, pedal it, pump it to the moon. A stoke-making mutation of fun-focused DNA, blinding proof that less can be a whole lot more.

Come out to play. You bet your ass the SB135 is still down.

Dart. Weave. Drift.

There are main lines and race lines. And then there are the completely unexpected lines that require a rider with a different headspace all together. Riders looking to find the fun love the SB135 for its quick-witted playfulness, agility, and its ability to unlock creativity.

Geometry Chart:
SizeX-SmallSmallMediumLargeX-Large
Wheel Size (IN) 27.5 27.5 27.5 27.5 27.5
Reach (mm) 401 426 456 476 501
Top Tube Length [Effective] (mm) 539 568 600 623 651
Stack (mm) 585 598 603 613 623
Head Tube Length (mm) 96 110 115 126 137
Seat Tube Length (mm) 355 380 410 450 495
Seat Tube Angle [Effective] (mm) 76.7° 76.6° 76.6° 76.6° 76.5°
Seat Tube Angle [Actual] (mm) 73.1° 73.1° 73.1° 73.1° 73.2°
Head Tube Angle (mm) 64.6° 64.6° 64.6° 64.6° 64.7°
BB Height [Estimated] (mm) 343 343 343 343 343
Front Center (mm) 715 738 778 803 833
Chainstay Length (mm) 433 433 433 433 433
Wheelbase (mm) 1148 1179 1211 1236 1266
Standover (mm) 700 711 713 716 718
Fork [Axle-To-Crown] (mm) 558 558 558 558 558
Fork Travel (mm) 160 160 160 160 160
Vertical Fork Travel (mm) 145 145 145 145 145
Fork Offset (mm) 37 37 37 37 37

Specs

Frame TURQ Series carbon fiber frame, Switch Infinity V2 suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle.
Fork FOX FACTORY 36 FIT 4/160MM
Rear Shock FOX FACTORY FLOAT
Wheels DT SWISS XM1700 30MM
Tires MAXXIS ASSEGAI 2.5 EXO+ / MAXXIS MINION DHR II 2.4 EXO+
Bottom Bracket SRAM DUB BSA 73
Crankset SRAM X0 EAGLE TRANSMISSION 170MM
Chainrings 30T
Shifters SRAM AXS POD CONTROLLER
Rear Derailleur SRAM X0 Eagle AXS T-Type, 12spd
Cassette/Freewheel SRAM X0 Eagle T-Type, 10-52t
Chain SRAM X0 Eagle T-Type, Flattop, 12spd
Brakes SRAM G2 RSC
Rotors SRAM CENTERLINE 200/SRAM CENTERLINE 180
Handlebars YETI CARBON 35X780MM
Tape/Grips ODI ELITE PRO
Stem BURGTEC ENDURO MK3 35X50MM
Headset CANE CREEK 40 INTEGRATED
Seatpost FOX TRANSFER 31.6MM / SM: 150MM, MD: 175MM, LG-XXL: 200MM
Saddle SILVERADO CUSTOM
Pedals Sold separately

* Subject to change without notice.
