Details
Forget the numbers. Mute the speculation. Let the other guys invent cute alternatives for "cross country. " steer clear of pigeonholes and limiting beliefs. Strap on your blinders and go get lost. Then decide what the sb120 means to you. And you alone. definition ready.
Frame Size | XS | SM | MD | LG | XL | XXL |
---|---|---|---|---|---|---|
Seat Tube Length |
345mm 13.6in |
365mm 14.4in |
400mm 15.7in |
440mm 17.3in |
470mm 18.5in |
485mm 19.1in |
Effective Toptube Length |
540mm 21.3in |
571mm 22.5in |
603mm 23.7in |
625mm 24.6in |
652mm 25.7in |
672mm 26.5in |
Headtube Angle (degrees) | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
Effective Seat Tube Angle (degrees) | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
Actual Seat Tube Angle (degrees) | 71.1 | 71.5 | 71.9 | 72.3 | 72.7 | 73.2 |
Chainstay Length |
433mm 17in |
435mm 17.1in |
437mm 17.2in |
439mm 17.3in |
441mm 17.4in |
443mm 17.4in |
Wheelbase |
1122mm 44.2in |
1157mm 45.5in |
1191mm 46.9in |
1217mm 47.9in |
1249mm 49.2in |
1274mm 50.2in |
Estimated BB Height |
335mm 13.2in |
335mm 13.2in |
335mm 13.2in |
335mm 13.2in |
335mm 13.2in |
335mm 13.2in |
Standover |
699mm 27.8in |
709mm 27.9in |
714mm 28.1in |
718mm 28.3in |
720mm 28.3in |
725mm 28.5in |
Headtube Length |
92mm 3.6in |
98mm 3.9in |
104mm 4.1in |
115mm 4.5in |
126mm 4.9in |
147mm 5.8in |
Axle to Crown |
544mm 21.4in |
544mm 21.4in |
544mm 21.4in |
544mm 21.4in |
544mm 21.4in |
544mm 21.4in |
Offset |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
44mm 1.7in |
Stack |
604mm 23.8in |
610mm 24in |
615mm 24.2in |
625mm 24.6in |
635mm 25in |
655mm 25.8in |
Reach |
395mm 15.6in |
425mm 16.7in |
455mm 17.9in |
475mm 18.7in |
500mm 19.7in |
515mm 20.3in |
Front Center |
689mm 27.1in |
722mm 28.4in |
754mm 29.7in |
778mm 30.6in |
808mm 31.8in |
831mm 32.7in |
Vertical Fork Travel |
119mm 4.7in |
119mm 4.7in |
119mm 4.7in |
119mm 4.7in |
119mm 4.7in |
119mm 4.7in |
X-Small | 4'10" - 5'3" |
---|---|
Small | 5'1" - 5'7" |
Medium | 5'5" - 5'11" |
Large | 5'10" - 6'3" |
X-Large | 6'1" - 6'7" |
XX-Large | 6'5" - 6'11" |
Specs

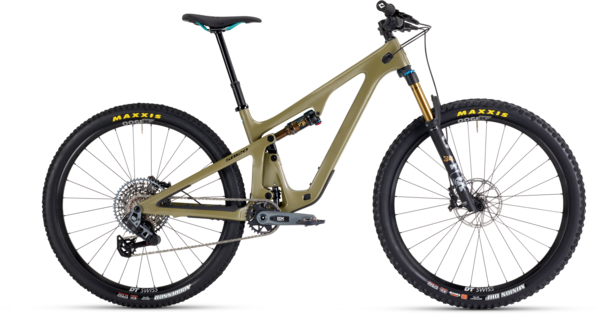

Frame | C/Series carbon fiber frame, Switch Infinity suspension technology, Threaded BB, internally tunneled cable routing, 148mm x 12mm BOOST dropouts, sealed enduro max pivot bearings, Universal derailleur hanger (UDH), and axle. |
---|---|
Fork | FOX PERFORMANCE 34/130MM |
Rear Shock | FOX PERFORMANCE FLOAT DPS |
Wheels | DT SWISS M1900 30MM |
Tires | MAXXIS MINION DHF 2.5 EXO / MAXXIS AGGRESSOR 2.3 EXO |
Bottom Bracket | SRAM DUB BSA 73 |
Crankset | SRAM GX EAGLE TRANSMISSION 30T 170MM |
Shifters | SRAM AXS POD CONTROLLER |
Rear Derailleur | SRAM GX EAGLE AXS TRANSMISSION |
Cassette/Freewheel | SRAM GX EAGLE TRANSMISSION 10-52 |
Chain | SRAM GX EAGLE TRANSMISSION FLATTOP |
Brakes | SRAM G2 R |
Rotors | SRAM CENTERLINE 180/SRAM CENTERLINE 180 |
Handlebars | BURGTEC RIDE WIDE ALLOY ENDURO 35X780MM |
Tape/Grips | ODI ELITE PRO |
Stem | BURGTEC ENDURO MK3 35X50MM |
Headset | CANE CREEK 40 INTEGRATED |
Seatpost | ONEUP DROPPER POST 31.6MM / XS-SM: 150MM, MD: 180MM, LG-XXL: 210MM |
Saddle | SILVERADO CUSTOM |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Lichen / Medium / 29-inch | 786044580073 | B25120CMDPLNFACE34300 | SB129499039D |
Lichen / Large / 29-inch | 786044580202 | B25120CLGPLNFACE34300 | SB12967834G |
