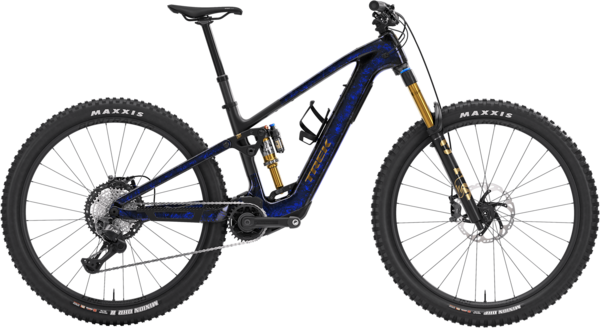

Trek Fuel+ EX 9.8 XT Di2 Gen 2 - 2026

Trek Fuel+ EX 9.8 XT Di2 Gen 2
$10,699.99
Color: Gloss Navy Smoke/Matte Trek Black
Size: Medium
Wheel Size: 29-inch
Please select options Unavailable
This item can be purchased online and picked up curbside from our store.

Details

Fuel+ EX 9.8 XT Di2 is an adaptable carbon e-MTB ready for sky-high climbs and dreamy descents. Its OCLV Mountain Carbon frame delivers a smooth boost from TQ's HPR-60 motor, while a Fox Factory suspension package (145mm rear, 150mm front) gives you buttery-smooth control through the rough. A wireless Shimano XT Di2 12-speed drivetrain gives you clean, customizable shifting and 4-piston XT M8200 brakes provide excellent modulation and stop-on-a-dime power.

Wheel Size:
- Size Small: 29-inch front / 27.5-inch rear
- Sizes Medium – XX-Large: 29-inch

Frame SizeSmallMediumLargeX-LargeXX-Large
Wheel size (in) 29"/27.5" 29" 29" 29" 29"
Seat tube (cm / in) 37.0 / 14.57 40.0 / 15.75 42.0 / 16.54 45.5 / 17.91 47.5 / 18.70
Seat tube angle (degree) 72.7 72.6 72.6 72.6 72.6
Effective seat tube angle (degree) 78.2 77.8 77.3 76.9 76.4
Head tube length (cm / in) 11.0 / 4.33 11.0 / 4.33 12.5 / 4.92 14.0 / 5.51 15.5 / 6.10
Head angle (degree) 64.6 64.5 64.5 64.5 64.5
Effective top tube (cm / in) 55.9 / 22.01 58.9 / 23.19 61.3 / 24.13 65.1 / 25.63 68.0 / 26.77
Bottom bracket height (cm / in) 33.9 / 13.35 33.9 / 13.35 33.9 / 13.35 33.9 / 13.35 33.9 / 13.35
Bottom bracket drop (cm / in) 3.4 / 1.34 3.5 / 1.38 3.5 / 1.38 3.5 / 1.38 3.5 / 1.38
Chainstay length (cm / in) 44.1 / 17.36 44.4 / 17.48 44.4 / 17.48 44.7 / 17.60 45.2 / 17.80
Offset (cm / in) 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73 4.4 / 1.73
Trail (cm / in) 12.9 / 5.08 12.9 / 5.08 12.9 / 5.08 12.9 / 5.08 12.9 / 5.08
Wheelbase (cm / in) 120.0 / 47.24 123.2 / 48.50 125.8 / 49.53 129.8 / 51.10 133.0 / 52.36
Standover (cm / in) 75.4 / 29.69 74.7 / 29.41 75.0 / 29.53 75.5 / 29.72 76.4 / 30.08
Frame reach (cm / in) 43.1 / 16.97 46.0 / 18.11 48.5 / 19.09 51.0 / 20.08 53.0 / 20.87
Frame stack (cm / in) 62.4 / 24.57 62.4 / 24.57 63.8 / 25.12 65.1 / 25.63 66.5 / 26.18
Frame SizeSmallMediumLargeX-LargeXX-Large
Rider height (cm / in) 155–165 / 61–65 165–177 / 65–70 177–188 / 70–74 188–195 / 74–77 195–203 / 77–80
Inseam (cm / in) 74–78 / 29–31 79–83 / 31–33 84–89 / 33–35 89–91 / 35–36 91–97 / 36–38

Specs

Frame OCLV Mountain Carbon, removable battery, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, ABP, UDH, Boost148, adaptable travel 145mm-160mm
Fork Fox Factory 36, Float EVOL air spring, GRIP X2 damper, 44mm offset, Boost 110, 15mm Kabolt X axle, 150mm travel
Rear Shock Fox Factory Float X, 205mm x 60mm
Wheels Front: Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' Rear Small: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 27.5'' Medium - X-Large: Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, SRAM XD freehub, Boost148, 12mm thru axle, 29''
Tires Front: Maxxis Minion DHF, tubeless ready, 3C, EXO+ casing, MAXXGRIP, folding bead, 29x2.5'' Rear Small: Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 27.5x2.5'' Rear Medium - XX-Large: Maxxis Minion DHR II, tubeless ready, 3C, EXO+ casing, MAXXTERRA, folding bead, 29x2.5''
Crankset E*thirteen E*spec Plus, 160mm length
Chainrings E*Thirteen Helix Core Steel 32t steel, 55mm chainline
Shifters Shimano XT Di2 M8250, 12 speed
Rear Derailleur Shimano XT Di2 M8260, 12 speed
Cassette/Freewheel Shimano XT M8200, 10-51, 12 speed
Chain Shimano Ultegra/XT M8100, 12 speed
Brakes Shimano XT M8200 4-piston hydraulic disc
Rotors Shimano RT86, 6-bolt, 203mm
Handlebars Race Face ERA, carbon, 35mm, 40mm rise, 800mm width
Tape/Grips Trek Line Elite, lock-on
Stem Bontrager Elite, 35mm, 0 degree, 45mm length
Seatpost Small: Bontrager Line Dropper 150mm Travel, MaxFlow, internal routing, 34.9mm, 410mm length, Medium: Bontrager Line Dropper 170mm Travel, MaxFlow, internal routing, 34.9mm, 450mm length Large, X-Large: Bontrager Line Dropper 200mm Travel, MaxFlow, internal routing, 34.9mm, 515mm length
Saddle Verse Short Comp, steel rails, 145mm width
Motor TQ-HPR60, 60 Nm, 300 watt maximum continuous rated power, 350 watt peak power
Battery TQ 580wh
Controller/Display TQ color LED display with Bluetooth & ANT+ connectivity
Charger TQ 4A charger

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Navy Smoke/Matte Trek Black / Medium / 29-inch 197216279587 5340347 FUE489195082
